OpenIPC AIO v1.0 "UltraSight" Enthusiast Edition
Product Details
Brand: OpenIPC

Dear partners and users !

We are very grateful to you for your trust and active support through pre-orders of our devices!

All OpenIPC AIO v1.0 "UltraSight" Enthusiast Edition devices are currently sold out (100 pcs).

Those who didn’t have time to buy or want more - please don’t worry, we plan to release a large batch of devices with corrections based on reviews in the near future.

OpenIPC AIO v1.0 "UltraSight" Enthusiast Edition

Super compact URLLC FPV air unit for control and low latency digital high definition video link.

Be one of the first to experience and support the first product directly from the creators of OpenIPC !

The UltraSight is a single double-sided miniature printed circuit board compatible in size with the Gibbon system (20mm x 20mm holes) containing a powerful transmitter (20-30 dBm), enabling long range and reliable signal, all while supporting resolutions up to 4k and frame rates up to 120fps !

The board comes pre-flashed with OpenIPC FPV firmware, so you can just install it in your vehicle and it is ready to transmit !

The Enthusiast Edition assumes you are able to follow up on our wiki page and telegram channels and get your Ground Station set up and running by yourself, using one of the many possible supported hardware configurations, from a laptop with linux to a US$10 NVR board + $US10 RTL8812au WiFi adapter, and your own ingenuity and efforts !

Advantages:
  • The lightest and smallest digital FPV system
  • High frame rate and low latency, while keeping quality above market industry
  • Low cost compared to other commercial solutions
  • Compatible with a Wide range of VRX solutions, including your current laptop!

Specifications:
  • SoC : SigmaStar SSC338Q
  • Sensor : Sony IMX415
  • WiFi band : 5.8 GHz only (first version)
  • Size : 32x32 mm (main board) and 19x19 mm (sensor board)
  • Supply voltage : 4,5 - 5,5 V

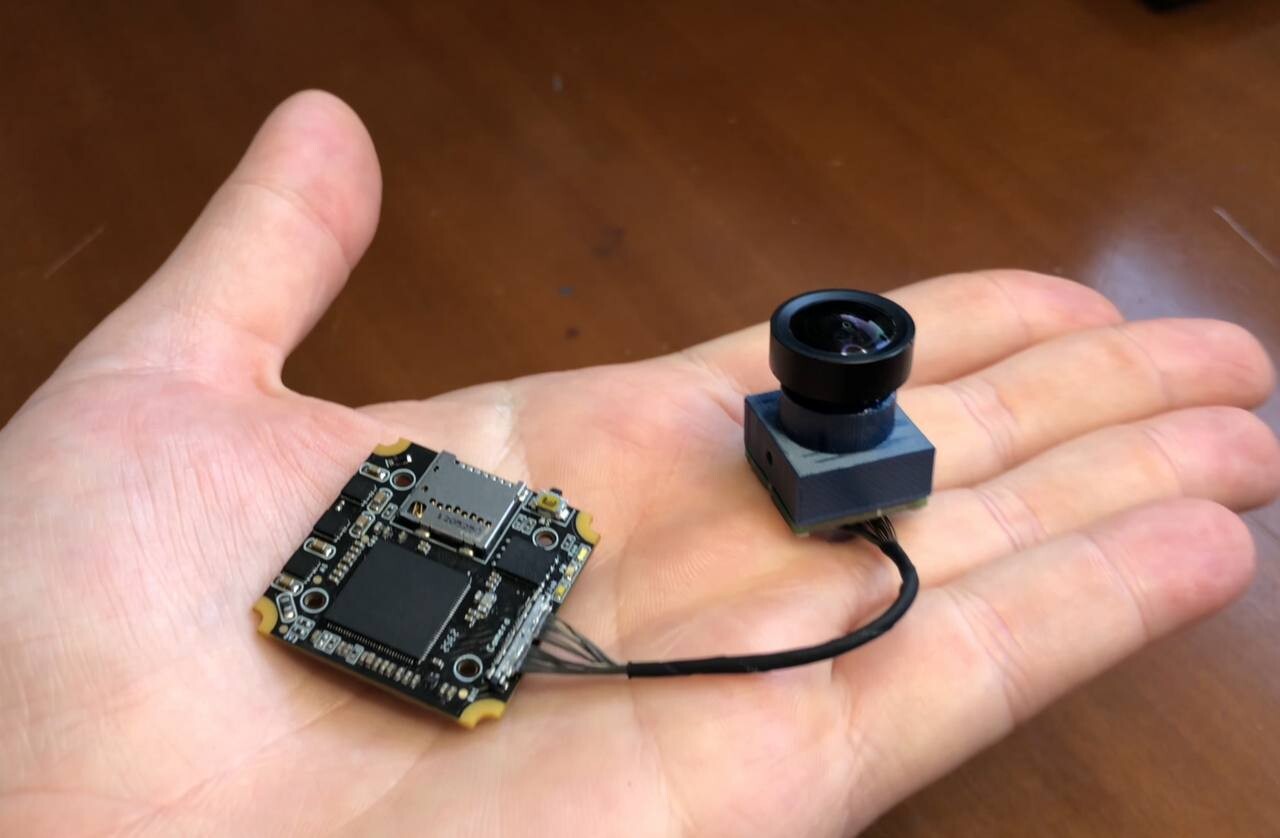

Set contents:
  • Main board (32x32 mm) with processor, SD card slot, WiFi module
  • Radiator 20x20 and mounting screws for it
  • Sensor board (19x19 mm) with IR cut lens and 3D print case
  • 75 mm MIPI cable for connecting main and sensor boards
  • Debugger and ribbon cable for configuring OpenIPC AIO
  • Two 5.8GHz antennas

Supported modes:
  • 1920x1080p up to 90fps
  • 1280x720 p up to 120fps
  • 3k up to 30fps

Additional links:
  • https://openipc.org
  • https://github.com/openipc
  • https://opencollective.com/openipc


We have already started the process of preparing for the production of devices at the factory.
The planned time of shipment of goods is the second half of March 2024.

Thank you for your support and participation in the project, colleagues and our friends !
